File Transfer API Reporting

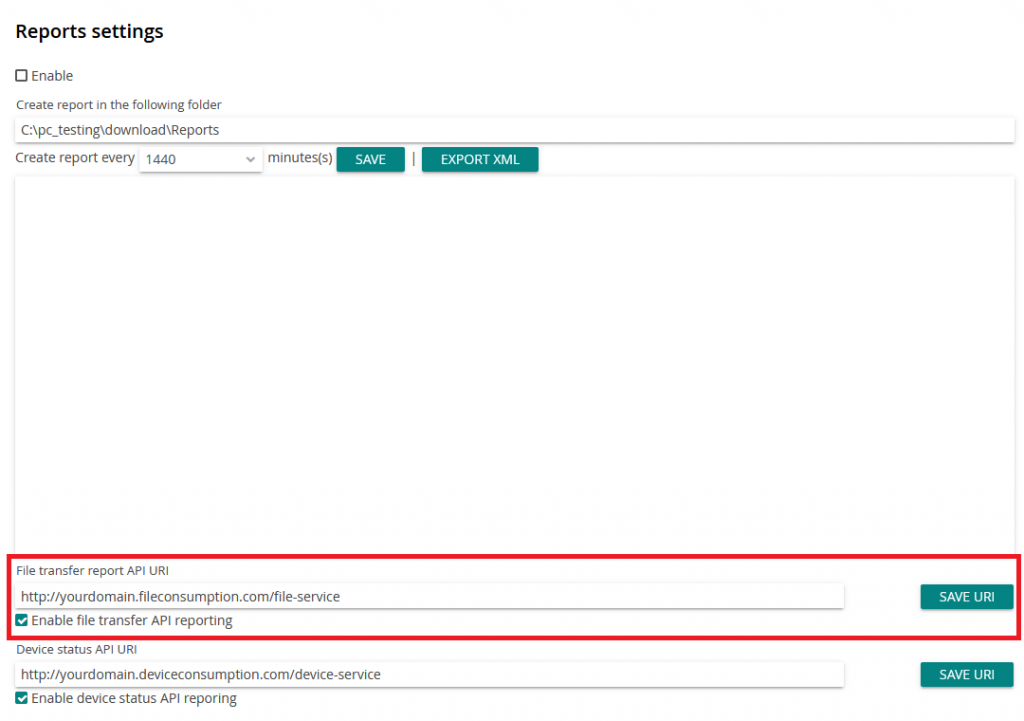

This service reports for every file sent, receive or failed as it gets done. The format of the report is shown below. The endpoint can be specified by navigating to SETTINGS -> REPORTS on the left-hand navigation pane.
{
  "REPORT": {
    "RECEIVED": {
      "LOG": [
        {
          "USERIDCONTACT": "pc-svr1@binfer.com",
          "TIME_TAKEN_IN_SEC": "0",
          "FROM_IP": "38.130.73.66",
          "SIZE1": "1024",
          "SIZE2": "1024",
          "TO_DEVICEID": "88a7e53c-d993-3f95-9430-298f4097cddf",
          "FROM_DEVICEID": "a9f7e979-65d6-3f79-9a52-9102a973b8b9",
          "FROM_USERID": "c1",
          "TO_IP": "192.192.192.39",
          "CREATED": "1553439748",
          "TO_USERID": "pc-svr1@binfer.com",
          "SUBJECT": "c1-s",
          "INDEX": "834edb35-b31c-3300-a7f7-d278460f6e0d",
          "FILENAME": "c1-svr-09123926.txt",
          "BANDWIDTH": "533055.0"
        }
      ]
    },
    "SENT": {
      "LOG": [
        {
          "USERIDCONTACT": "pc-svr1@binfer.com",
          "TIME_TAKEN_IN_SEC": "0",
          "FROM_IP": "192.192.192.39",
          "SIZE1": "1024",
          "SIZE2": "1024",
          "TO_DEVICEID": "a9f7e979-65d6-3f79-9a52-9102a973b8b9",
          "FROM_DEVICEID": "88a7e53c-d993-3f95-9430-298f4097cddf",
          "FROM_USERID": "pc-svr1@binfer.com",
          "TO_IP": "38.130.73.66",
          "CREATED": "1553435128",
          "TO_USERID": "c1",
          "SUBJECT": "s-c1",
          "INDEX": "d9f3b17b-f34a-33d9-a4e8-9cae04ec064c",
          "FILENAME": "svr-c1-09123824.txt",
          "BANDWIDTH": "1672382.0"
        }
      ]
    },
    "FAIL": {
      "LOG": []
    }
  }
}

All API responses are encoded as strings from their native data types. They can be converted to specific data types. The data types are as per Java data types (see: https://docs.oracle.com/javase/tutorial/java/nutsandbolts/datatypes.html)

SL.NODATA POINTSNATIVE DATA TYPEDESCRIPTION
1USERIDCONTACTStringThis is the admin user id.
2TIME_TAKEN_IN_SECLongTime taken for this transfer session. If the transfer was auto-resumed, then it would only show the time taken for the partial transfer.
3FROM_IPStringIP address of the sending device.
4SIZE1LongThe actual data size.
5SIZE2LongData transferred in this session. In the case of a resumed transfer, this may be smaller than SIZE1
6TO_DEVICEIDUUIDA universally unique id assigned to the device.
7FROM_DEVICEIDUUIDA universally unique id assigned to the device.
8FROM_USERIDStringThis is a user id(typically email) or PC client id.
9TO_IPStringIP address of the receiving device.
10CREATEDLongThe timestamp of when the transfer started.
11TO_USERIDStringThis is a user id(typically email) or PC client id.
12SUBJECTStringName of the transfer
13INDEXUUIDA unique id for this transfer. An auto-resume of a previously interrupted transfer will also have the same INDEX code.
14FILENAMEStringName of the file
15BANDWIDTHDoubleThe net bandwidth for this transfer session.

Sample Response Consumption

Below we have provided a sample JSP that shows how to extract the data out of the request when it hits your server.  In this example we simply convert the data to a string and print it out, most use cases will want to have a JSON library to assist in extracting specific values from within the string.

<%--
Document : ESyncTestAPI
Created on : Dec 11, 2020, 2:11:14 PM
Author : Binfer Inc.
--%>

<%@page import="java.io.ByteArrayOutputStream"%>
<%@page import="java.io.OutputStream"%>
<%@page import="java.io.InputStream"%>
<%@page contentType="text/xml" pageEncoding="UTF-8"%>
<%
System.out.println("ESyncTestAPI Started\n");
try {
//Grab the input stream and create the output stream
InputStream is = request.getInputStream();
ByteArrayOutputStream os = new ByteArrayOutputStream();

//Read from the input stream to the output stream
int n;
byte[] buffer = new byte[1024];
while((n = is.read(buffer)) > -1) {
// Don't allow any extra bytes in final write
os.write(buffer, 0, n);
}

//Convert the output stream to a string to be processed or printed
String s = new String(os.toByteArray());
System.out.println(s);

//Close and flush the streams
is.close();
os.flush();
os.close();
} catch (Exception e) {
System.out.println("Expn. ESyncTestAPI,msg:" + e.getMessage());
}

System.out.println("\nEsyncTestAPI Ended");
%>
